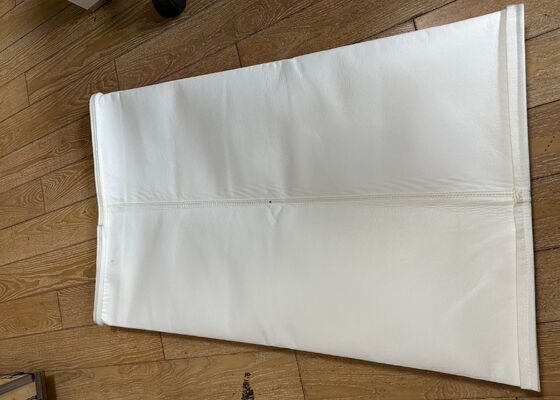

Industrial Filter Bag Polyester Fiber Water Filtration Bag with Excellent Resistance to Hydrolysis Acids and Alkalis for Long Lasting
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics

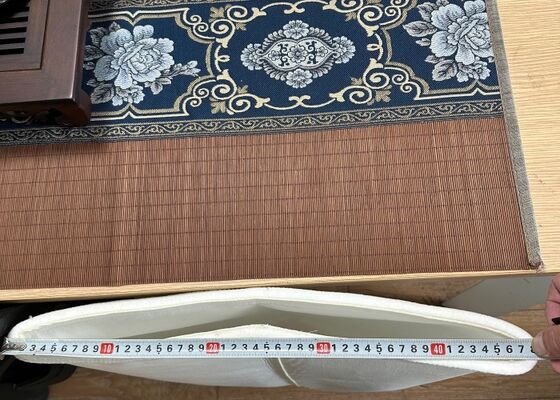

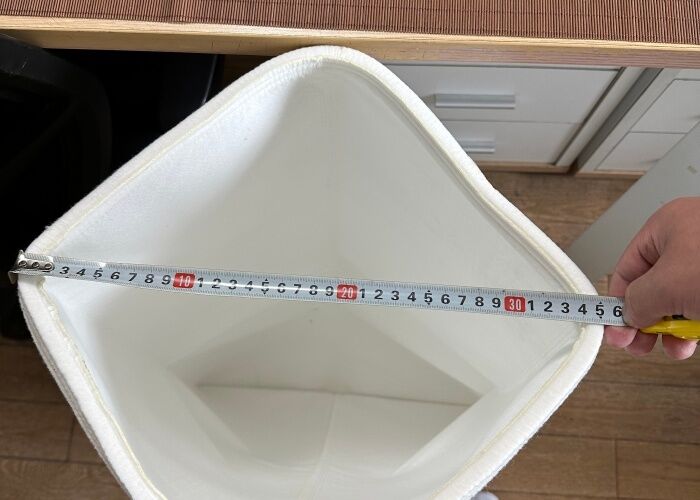

Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material |
PE,PP,NMO,PTFE |
| Cuff |
PP Lock, Stainless steel |
| Relative filtration pore size |
0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type |
various specifications |
| Airtight method: |
Hot Melt, reverse sewing |
| Effective filtration area |
various specifications |
| Others |
special requirement of diameter and collar extension can be customized |
|
PRODUCT CODE:
|
|
Component
|
Elongation@50N/5cm
|
|
Fibre
|
100%PET
|
Longitudinal(%)
|
Transverse(%)
|
|
Scrim
|
100%PET
|
<3%
|
<3%
|
|
Weight(g/m²)
|
500
|
Operating Temperatures
|
|
Thickness(mm)
|
2.0
|
Continuous(°C)
|
Surge(°C)
|
|
Density(g/cm3)
|
0.25
|
130
|
150
|
|
Mean Air Permeability
(L/dm².min)
|
150-250
|
Max Dry Shrinkage in 90 minutes:(150°C)(%)
|
<1%
|
|
Breaking Strength
|
Surface Treatment
|
Heat Setting, Singed,
Represent add stainless
steel fibers
|
|
Longitudinal(N)
|
Transverse(N)
|
|
>1000
|
>1200
|
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
We have full range of materials, can supply numerous customized filter bags to meet your needs.
Philis will sincerely service you with our super quality and competitive price product.
